140L Stainless Steel Tank Water Heater in CAD Design

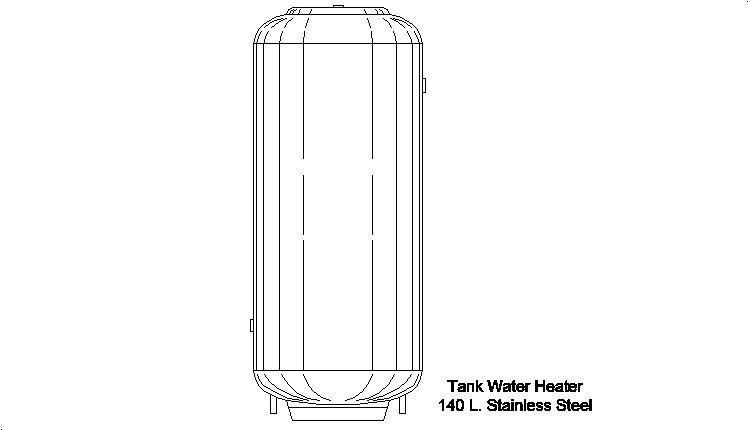

The 140-liter stainless steel water heater shown in this CAD elevation is designed for residential heating applications. Its cylindrical shape ensures optimal pressure distribution and durability. The material, stainless steel, provides excellent resistance to corrosion and ensures a long service life.

The model features sturdy support legs for stability and a compact design to fit into standard utility spaces. The inlet and outlet connections are strategically placed to facilitate efficient water flow and compatibility with existing heating systems. This design is ideal for use in closed-loop systems, ensuring consistent hot water availability for hydronic or radiant floor heating.

The tank has a capacity of 140 liters (approximately 37 gallons), making it suitable for small to medium residential systems. Its dimensions are approximately 50 cm in diameter and 150 cm in height (equivalent to 20 in x 59 in). The compact design allows for easy installation while maintaining sufficient capacity for heating demands.

Additional models may be available in other capacities, ranging from 80 liters (21 gallons) to 300 liters (79 gallons), depending on residential or commercial requirements. The cylindrical shape minimizes the space required while maximizing water storage efficiency.

What materials are used for the tank?

The tank is made of stainless steel, ensuring durability and resistance to high temperatures and corrosion.

What safety standards does it meet?

It complies with ASME Boiler and Pressure Vessel Code Section IV for safety in water heating systems.

What insulation is included?

The tank typically includes polyurethane foam insulation, maintaining energy efficiency by reducing heat loss.

Are these tanks ENERGY STAR certified?

Yes, many models meet ENERGY STAR guidelines for high efficiency, minimizing energy consumption.

Is this tank compatible with solar heating systems?

Yes, it is often used as part of solar thermal systems, providing additional storage for pre-heated water.

Stainless steel water heaters offer exceptional durability and resistance to corrosion, even under extreme conditions. This makes them ideal for residential heating systems where reliability is critical. Additionally, stainless steel's non-porous surface prevents contamination and ensures clean water delivery.

The lightweight construction of stainless steel tanks makes them easier to install compared to other materials like cast iron. They are also compatible with renewable energy systems, enhancing their appeal for eco-conscious homeowners looking to reduce their environmental footprint.

Stainless steel water heaters have evolved significantly over the decades. Early models were prone to rust and required frequent maintenance, but advancements in stainless steel alloys have drastically improved their longevity and performance. Modern designs incorporate advanced welding techniques and insulation materials, making them highly efficient.

Globally, these tanks meet standards such as EN 12897 in Europe and CSA B51 in Canada, ensuring their compatibility and safety across various markets. Their adaptability to solar thermal systems has also contributed to their popularity worldwide.
