Fire Hose Cabinet Design with Detailed CAD Views

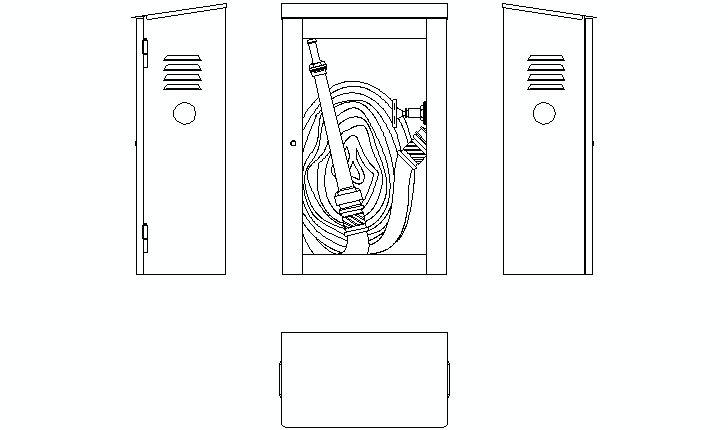

The fire hose cabinet shown in this CAD drawing is a vital component of fire protection systems, designed for easy access during emergencies. The front elevation highlights a rolled fire hose neatly stored inside the cabinet, ready for deployment. The cabinet features a transparent or translucent door that allows visibility of the hose without the need to open it, ensuring rapid identification and access.

The side views display ventilation grilles on the cabinet doors, which prevent moisture buildup and ensure the hose remains in optimal condition. Hinges are positioned on one side for smooth door operation. The cabinet is designed to accommodate standard fire hoses and nozzles, making it versatile for residential, commercial, or industrial installations.

The fire hose cabinet typically measures 90 cm in height, 60 cm in width, and 25 cm in depth (approximately 35 in x 24 in x 10 in). These dimensions are standard for accommodating hoses of up to 30 meters (98 feet) in length, with room for a nozzle and accessories. Custom sizes are also available to meet specific requirements.

The cabinet is constructed from steel with a powder-coated finish for durability and corrosion resistance. The transparent door is made of polycarbonate or tempered glass, providing high impact resistance and visibility. Vented grilles are incorporated into the side panels to maintain airflow and prevent internal condensation.

What standards do fire hose cabinets follow?

Fire hose cabinets comply with NFPA 14 for standpipe and hose systems and NFPA 10 for portable fire equipment access.

What materials are used?

The cabinets are made from galvanized steel or stainless steel, ensuring durability and resistance to fire and corrosion.

Are they weather-resistant?

Yes, many cabinets are designed for indoor and outdoor use, with weather-resistant finishes and seals to protect the hose.

What type of hoses can be stored?

They accommodate standard fire hoses ranging from 1.5 inches to 2.5 inches in diameter, along with compatible nozzles.

Are there mounting options?

Yes, cabinets can be wall-mounted, recessed, or free-standing, depending on installation requirements.

Modern fire hose cabinets are designed for durability and efficiency. The use of high-quality materials such as galvanized steel and polycarbonate ensures long-lasting performance in various environments. The transparent door provides visibility, allowing first responders to quickly assess the equipment's readiness without opening the cabinet.

Additional features like vented grilles prevent internal moisture buildup, extending the hose's lifespan. The cabinets are also designed for compatibility with a wide range of fire hoses and accessories, making them a versatile choice for commercial and residential applications.

Fire hose cabinets have evolved over the years to meet modern safety standards. Early designs were simple enclosures, while today's cabinets feature advanced materials and functionalities to enhance accessibility and durability. The integration of transparent doors and vented panels is a significant advancement, improving visibility and hose maintenance.

Globally, standards like ISO 630 for material strength and BS EN 671 for hose systems ensure consistent quality and performance. These standards have made fire hose cabinets a critical component of fire safety infrastructure worldwide.
