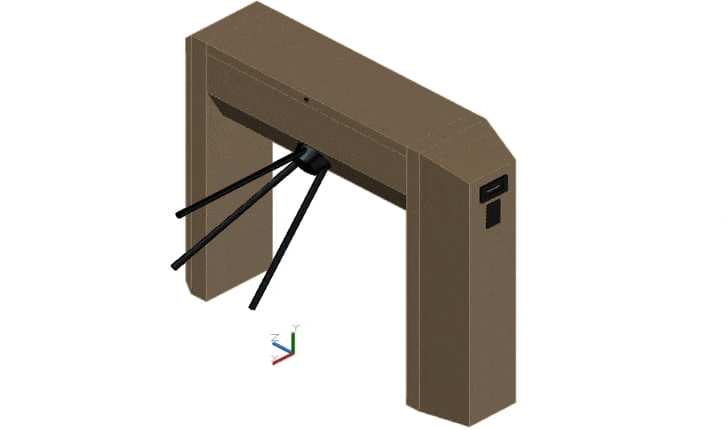

Tripod turnstile entrance control gate CAD design for AutoCAD

The tripod turnstile entrance control gate is a reliable access management solution widely used in security checkpoints, entry control systems, and public venues. Known for its streamlined design, this gate enhances entry and exit flow while ensuring restricted access to unauthorized individuals. Other common names include turnstile barrier and entry control tripod gate, emphasizing its versatility and utility.

The standard size for a tripod turnstile gate typically features a height of 34 inches (0.86 meters) and a width of 28 inches (0.71 meters), ensuring compact yet effective placement. These dimensions allow seamless integration into various entry points while maintaining robust functionality.

Adequate spacing around the turnstile gate ensures optimal operation and user safety. A clearance of 20 inches (0.51 meters) on either side and 40 inches (1.02 meters) in front and back is recommended for unrestricted movement and compatibility with adjacent structures.

The tripod turnstile is composed of a rotating arm mechanism, control panel, and base frame. Materials like stainless steel, aluminum, and reinforced plastic are commonly used for durability and corrosion resistance. Each component is meticulously designed for long-lasting performance in high-traffic environments.

The tripod turnstile gate integrates seamlessly with other building management systems, including security cameras, card readers, and automatic doors. This compatibility enhances operational efficiency, offering a comprehensive solution for access control and facility management.

Various models of tripod turnstile gates are available, including manual, semi-automatic, and fully automatic versions. These units cater to diverse needs, from high-traffic public spaces to private office settings, making them a versatile choice for architectural and engineering designs.
