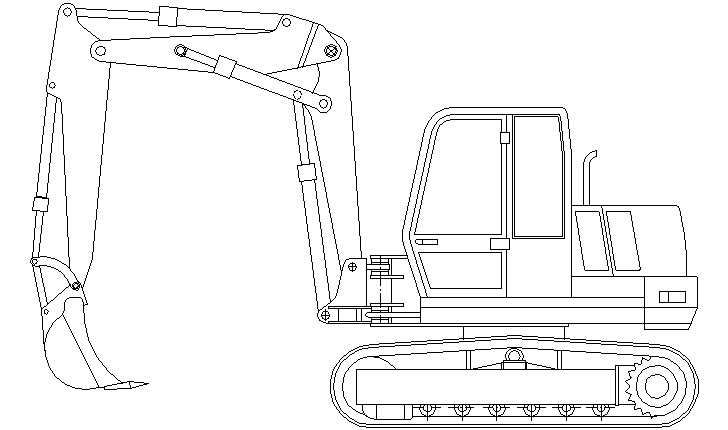

Detailed Mini Excavator CAD Drawing

Mini excavators, also known as compact excavators or small diggers, are lightweight and versatile machines ideal for precision tasks in construction. These machines feature a tracked undercarriage, a rotating cab, and an extendable boom arm that supports various attachments like buckets, augers, and breakers. Their small size and maneuverability make them suitable for projects in confined spaces or urban settings.

Typical dimensions for mini excavators include lengths of 13 to 20 feet (4 to 6 meters), widths of 4 to 6 feet (1.2 to 1.8 meters), and heights of 7 to 10 feet (2.1 to 3 meters). Their compact build allows them to access tight areas without compromising functionality, making them invaluable in urban construction and landscaping tasks.

Mini excavators are available in weight classes ranging from 1 ton to 6 tons, with load capacities suited for light to medium excavation work. Compact models typically handle up to 0.5 cubic yards of material, while larger mini excavators can move up to 1 cubic yard. These machines are categorized as ultra-compact, compact, and standard mini excavators, depending on their operating weight and digging depth.

1. Excavation: Perfect for trenching, foundation digging, and site preparation in tight spaces.

2. Landscaping: Suitable for grading, soil removal, and planting tasks.

3. Demolition: Ideal for light structural demolition with attachments like hydraulic breakers.

4. Utility Installation: Used for laying pipes, cables, and drainage systems in confined areas.

Attachments like grapples, augers, and hammers enhance their adaptability, allowing operators to take on specialized tasks with ease.

Operators must follow OSHA guidelines for safe handling of mini excavators, including thorough pre-operation inspections, appropriate use of personal protective equipment (PPE), and adherence to load limits. Avoid overloading attachments and maintain stability by operating on level ground whenever possible.

Popular types include zero-tail-swing mini excavators for tight corners, long-arm models for extended reach, and compact-radius excavators for reduced swing footprint. These options ensure operators can find the perfect machine to suit a variety of project requirements, enhancing efficiency and precision.
