Commercial Sink Table CAD Blocks for Professional Kitchens

insert_drive_file size: 5 kb

folder category: commercial, business and industrial equipment - commercial kitchen

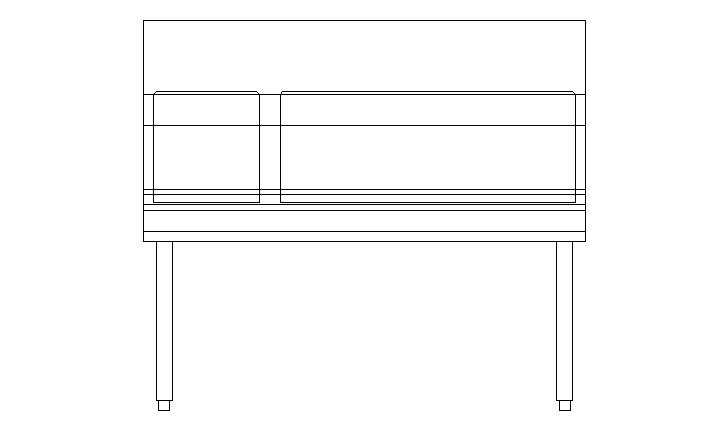

info description: commercial sink table in elevation view

draw file extension: .dwg CAD - AutoCAD software

download CAD block

Free CAD Files for Commercial Sink Tables

Introduction to Commercial Sink Tables

A commercial sink table is an essential part of any restaurant or food service kitchen, providing a dedicated space for washing dishes, utensils, and food. This sink table CAD block offers a detailed top-down view of a commercial-grade sink table, making it ideal for integration into kitchen layout designs. Available in dwg format, this CAD block is compatible with AutoCAD and other major design software.

Dimensions and Key Features of Commercial Sink Tables

Most commercial sink tables come in standardized dimensions to fit within typical kitchen layouts. Common widths range from 30 to 60 inches (76.2 to 152.4 cm), with heights suited for ergonomic use, typically around 36 inches (91.4 cm). This CAD block reflects these typical dimensions, ensuring that the sink table can be seamlessly incorporated into any commercial kitchen. Additionally, features such as side splash guards and under-counter shelving are often included in these tables to increase functionality and hygiene.

Types of Commercial Sink Tables

There are several types of commercial sink tables available to suit different needs, including single-basin, double-basin, and triple-basin models. Some sink tables are equipped with drainboards for drying utensils, while others include integrated garbage disposals for added convenience. This particular CAD block can be customized to reflect different configurations based on the kitchen’s specific needs.

Designing a Kitchen Layout with Commercial Sink Tables

When designing a kitchen, it’s crucial to place the sink table near food prep areas and dishwashing stations for easy access. Proper spacing ensures that chefs and kitchen staff can quickly clean utensils and ingredients without interrupting the workflow. This CAD block ensures that the sink table is placed efficiently in relation to other equipment, providing maximum convenience and safety. Clearances around the sink for cleaning and movement are critical for both compliance and functionality.

Download Free Commercial Sink Table CAD Blocks

This commercial sink table CAD block is available for free download in dwg format. It is perfect for architects and kitchen designers looking to incorporate a functional sink area into their commercial kitchen layouts. Download now to enhance your designs with precise and professional CAD files that are easy to modify and integrate into any project.
