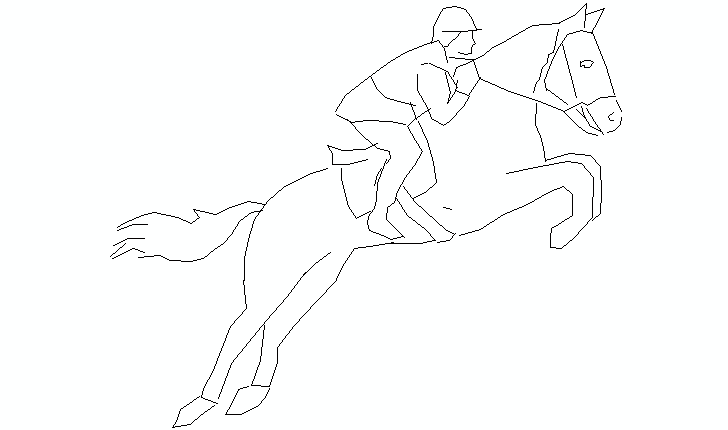

Jumping Horse with Rider in Lateral Elevation CAD Block

This jumping horse with rider in lateral elevation CAD block represents a dynamic moment in horse jumping. The design highlights both the horse and the rider in full motion, captured from a side view. This CAD block is also referred to as a horse jumping silhouette or equestrian contour. The file is available in .dwg format and can be integrated into various architectural and landscape designs.

The typical dimensions for the jumping horse with rider CAD block are approximately 48 inches (1.22 meters) in length and 36 inches (0.91 meters) in height. These dimensions provide a realistic portrayal of a horse and rider in motion, making it ideal for incorporation into technical CAD designs where equestrian elements are required.

This jumping horse with rider CAD block is widely used in equestrian facility designs, parks, and outdoor arenas. Architects and designers often include such elements to represent motion and sport-related activities in their CAD drawings, offering an enhanced visual context for public and recreational spaces.

Incorporating a jumping horse with rider CAD block adds value to projects that require the depiction of dynamic scenes, particularly in sports or equestrian facilities. These elements are typically found in arena designs, park layouts, and large landscape projects, contributing to a more vivid and detailed visual representation in the technical plans.

The jumping horse with rider CAD block often interacts with elements such as fences, arena boundaries, and spectator stands in larger architectural and landscape CAD designs. By placing the horse and rider in context, the designer enhances the realism of sports and recreational spaces in their plans.
